Achieve stronger initial stability, even in low bone density

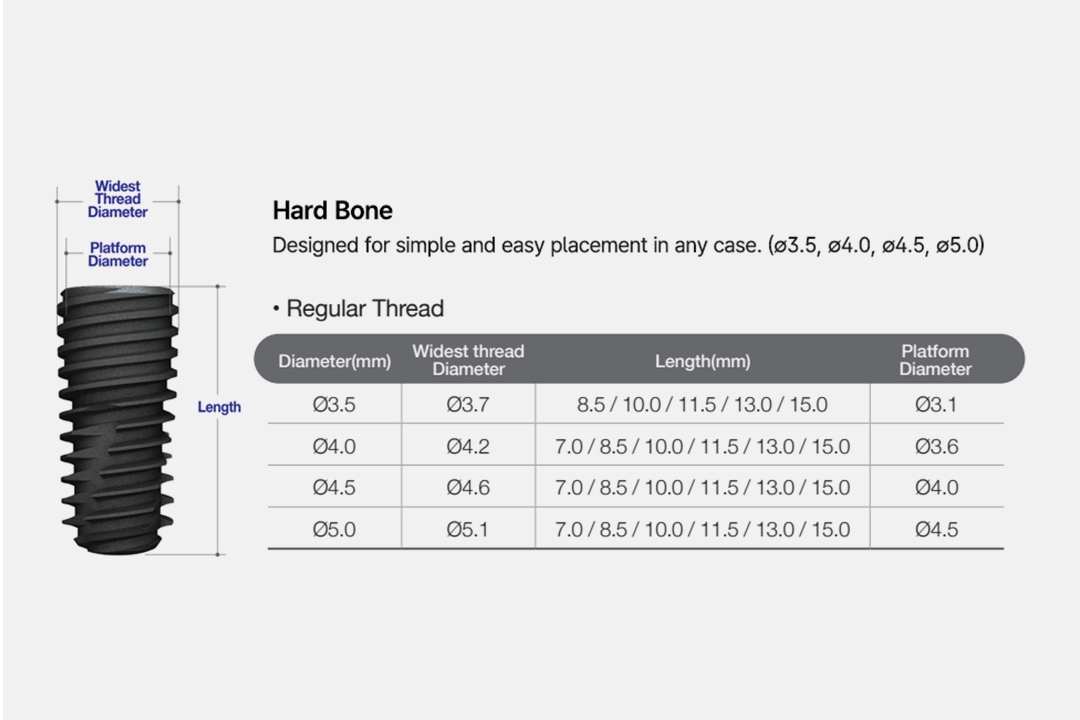

Regular Thread
Designed for simple and easy placement in any case, especially in hard bone (03.5, 04.0, 04.5, 05.0)

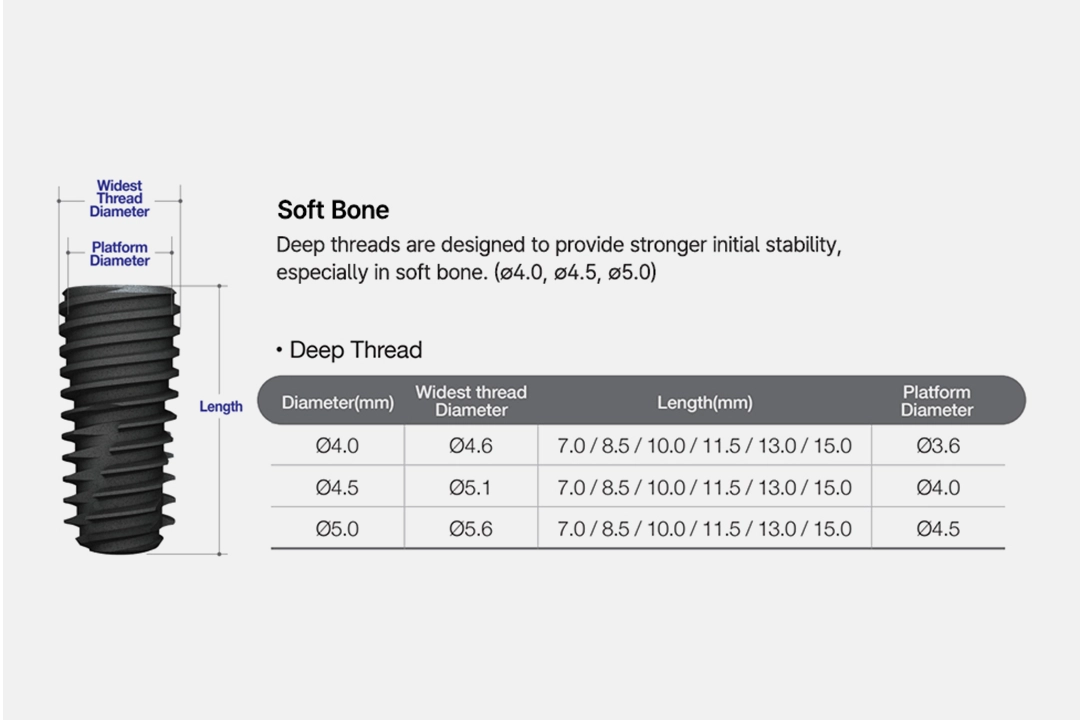

Deep Thread
Designed to provide stronger initial stability, especially in soft bone. (04.0, 04.5, 05.0)

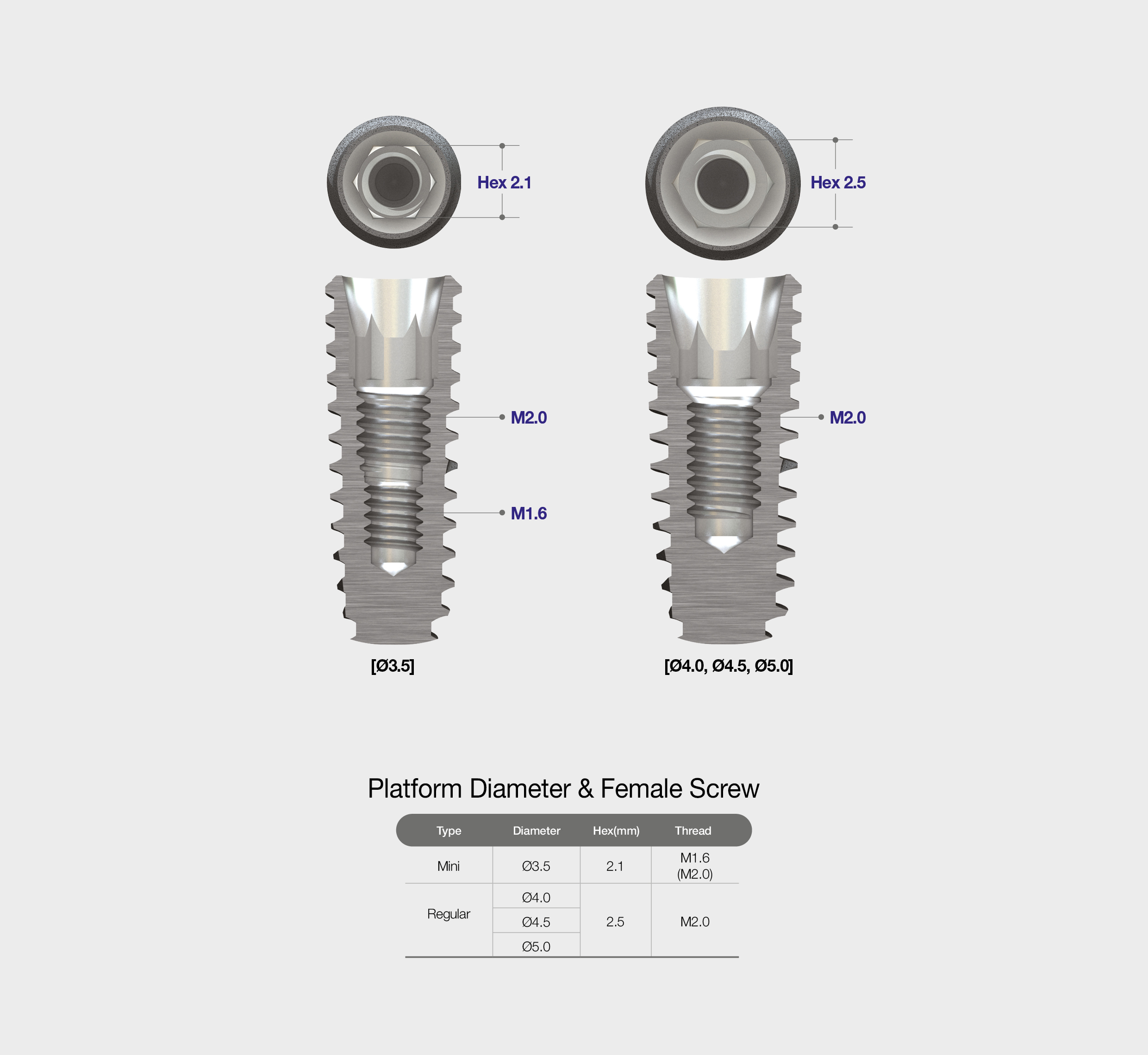

Size & Dimension
Surgical Drilling Sequence with ST Surgical Kit

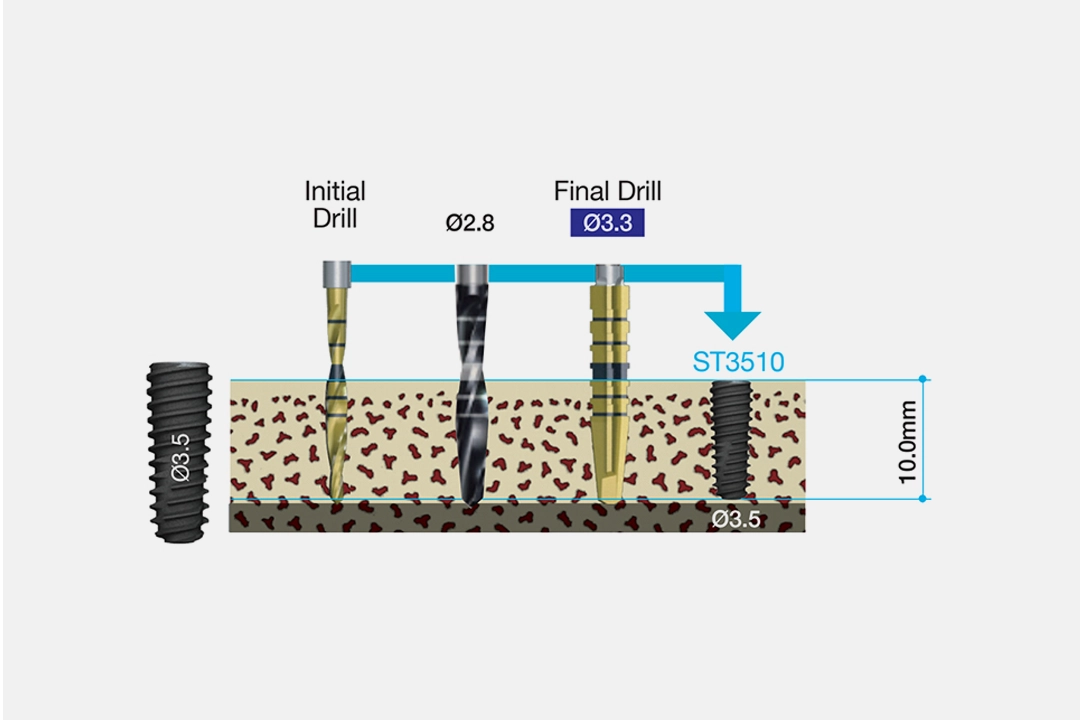

Ø3.5 Fixture / Ø3.5 Drilling Sequence
Actual fixture length is 10.0mm & shaping drill length is 0.59mm, so total drill depth is 10.59mm.

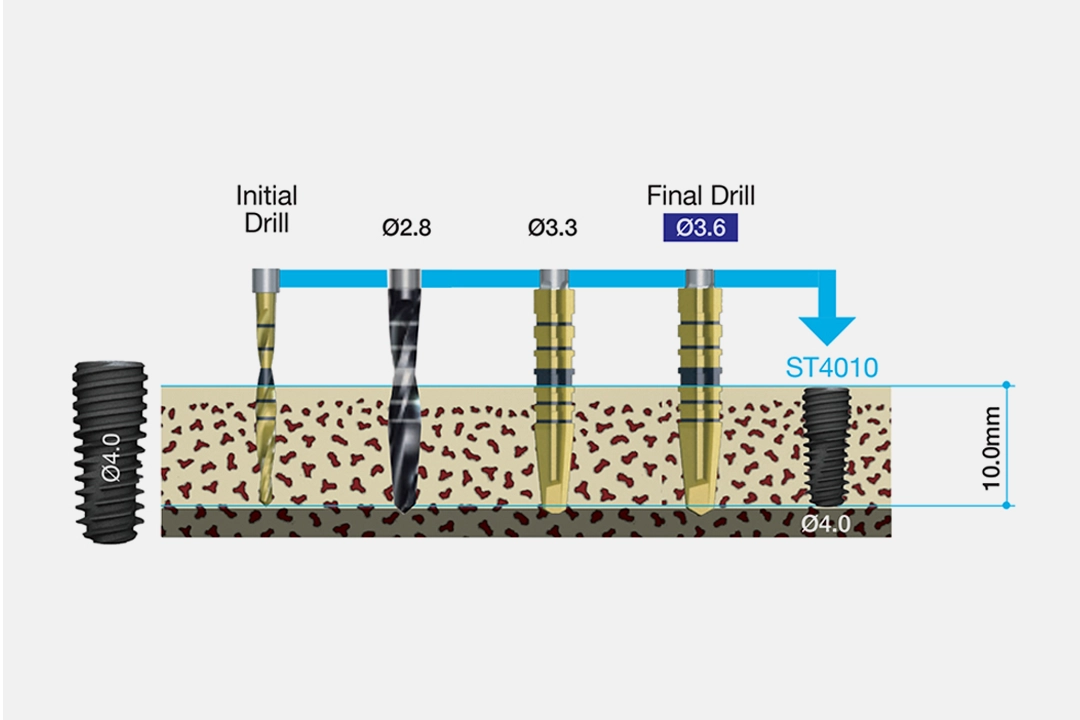

Ø4.0 Fixture / Ø4.0 Drilling Sequence
Actual fixture length is 10.0mm & shaping drill length is 0.68mm, so total drill depth is 10.68mm

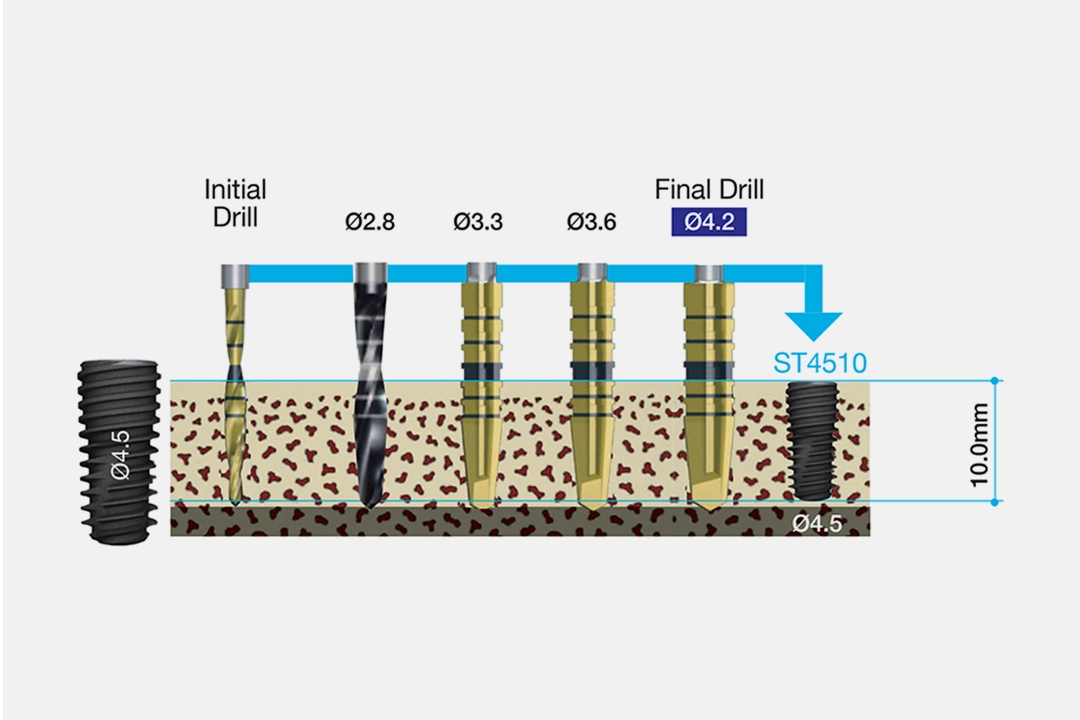

Ø4.5 Fixture / Ø4.5 Drilling Sequence
Actual fixture length is 10.0mm & shaping drill length is 0.85mm, so total drill depth is 10.85mm

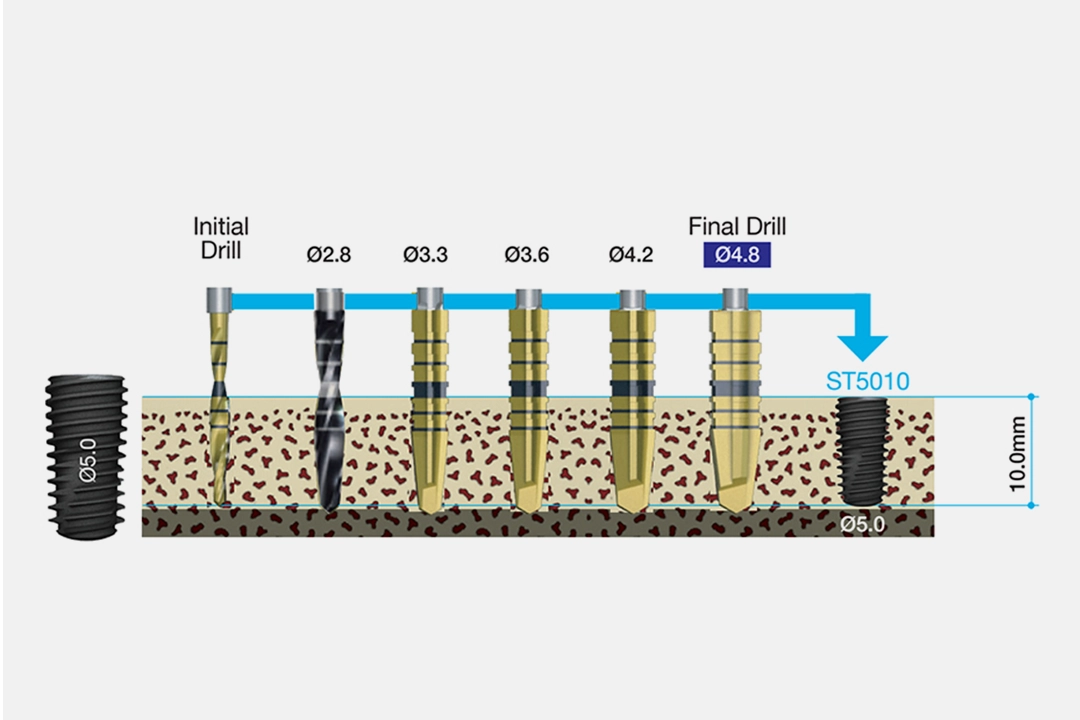

Ø5.0 Fixture / Ø5.0 Drilling Sequence
Actual fixture length is 10.0mm & shaping drill length is 0.89mm, so total drill depth is 10.89mm
